Template Definitions

The Template definitions view allows the user to configure predefined layouts or create new layouts.

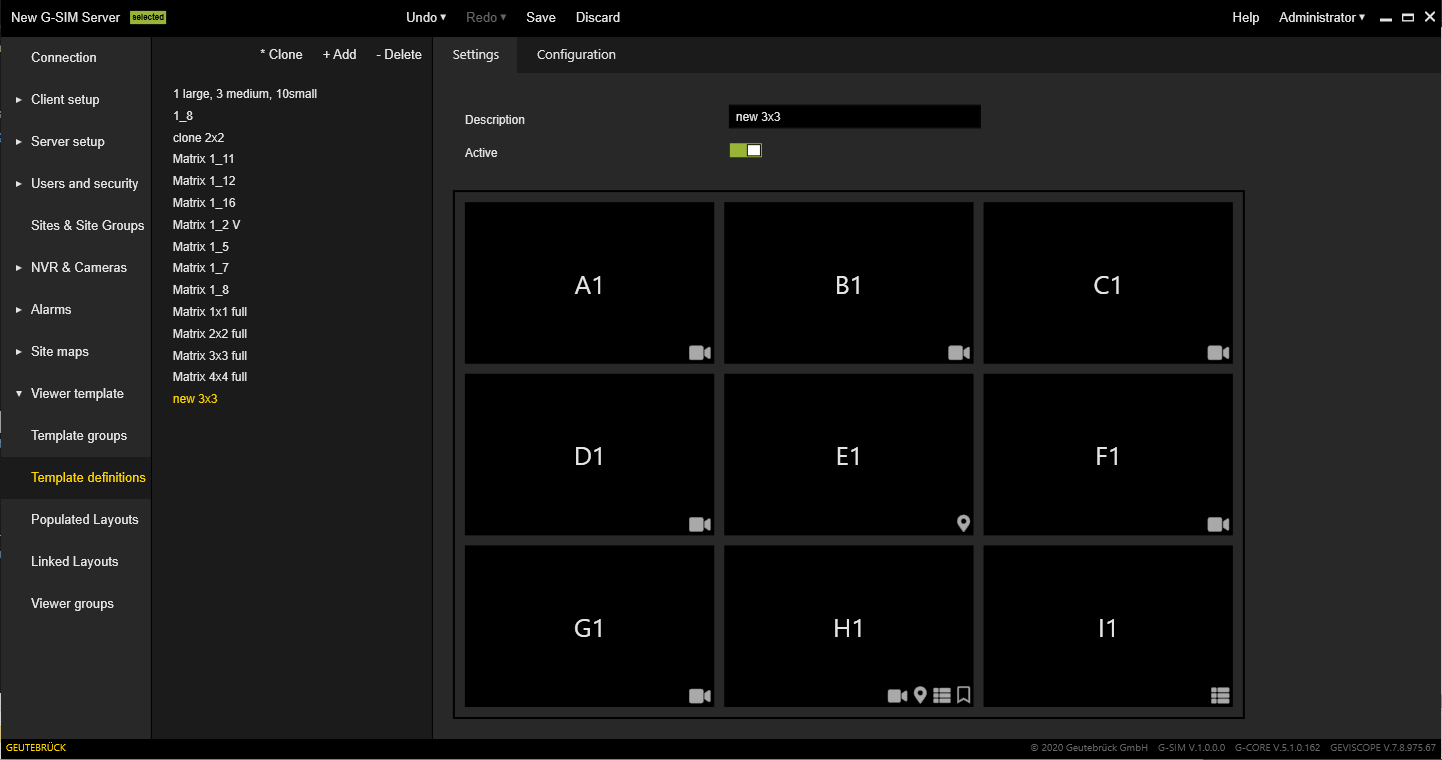

Settings

The Settings tab contains the following settings:

Description: Allows the user to configure the description for the selected layout.
Active: The switch enables or disables the selected layout.

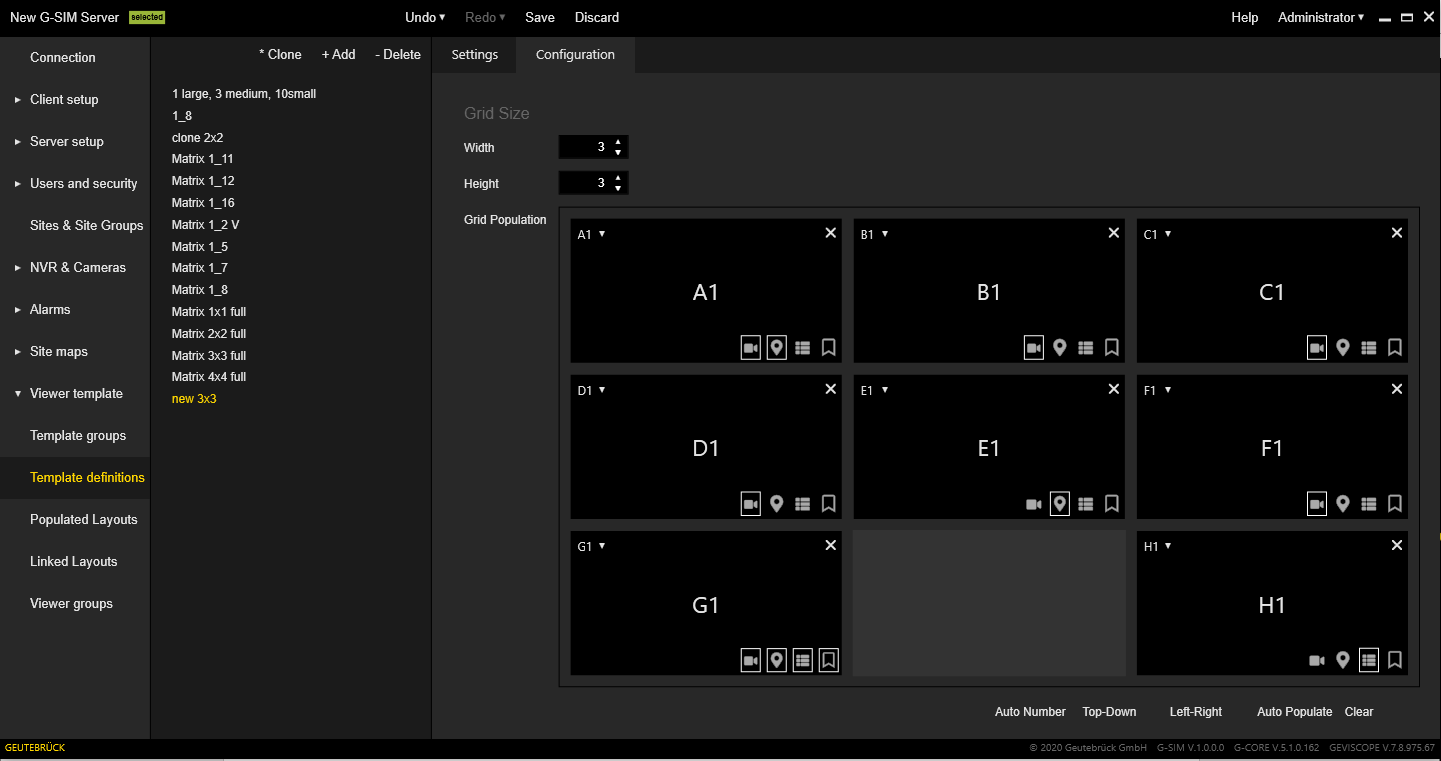

The Configuration tab contains the following settings:

Settings	Description
Width / Height	Defines the grid resolution of the editor. A higher resolution allows you to configure more complex layouts.
Grid Population	An editor that allows you to configure the selected layout and set the number of viewers and content restrictions.
Auto Number	Automatic assignment of viewer numbers in an appropriate order.
Top-Down / Left-Right	Assign viewer numbers in an appropriate order.
Auto Populate	Fills all grid cells with a viewer cell.
Clear	Removes all viewer cells from the grid.

The viewer cell contains the following elements:

Element	Description
Viewer number selector	Allows the user to select viewer number from the list of available numbers.
Close button	Removes the viewer cell from layout.
Buttons for allowed content types	When a button is pressed, it means that the appropriate content type is allowed. Video Map List Browser bookmark

Element

Description

Viewer number selector

Allows the user to select viewer number from the list of available numbers.

Close button

Removes the viewer cell from layout.

Buttons for allowed content types

When a button is pressed, it means that the appropriate content type is allowed.
