Populated Layouts
Settings

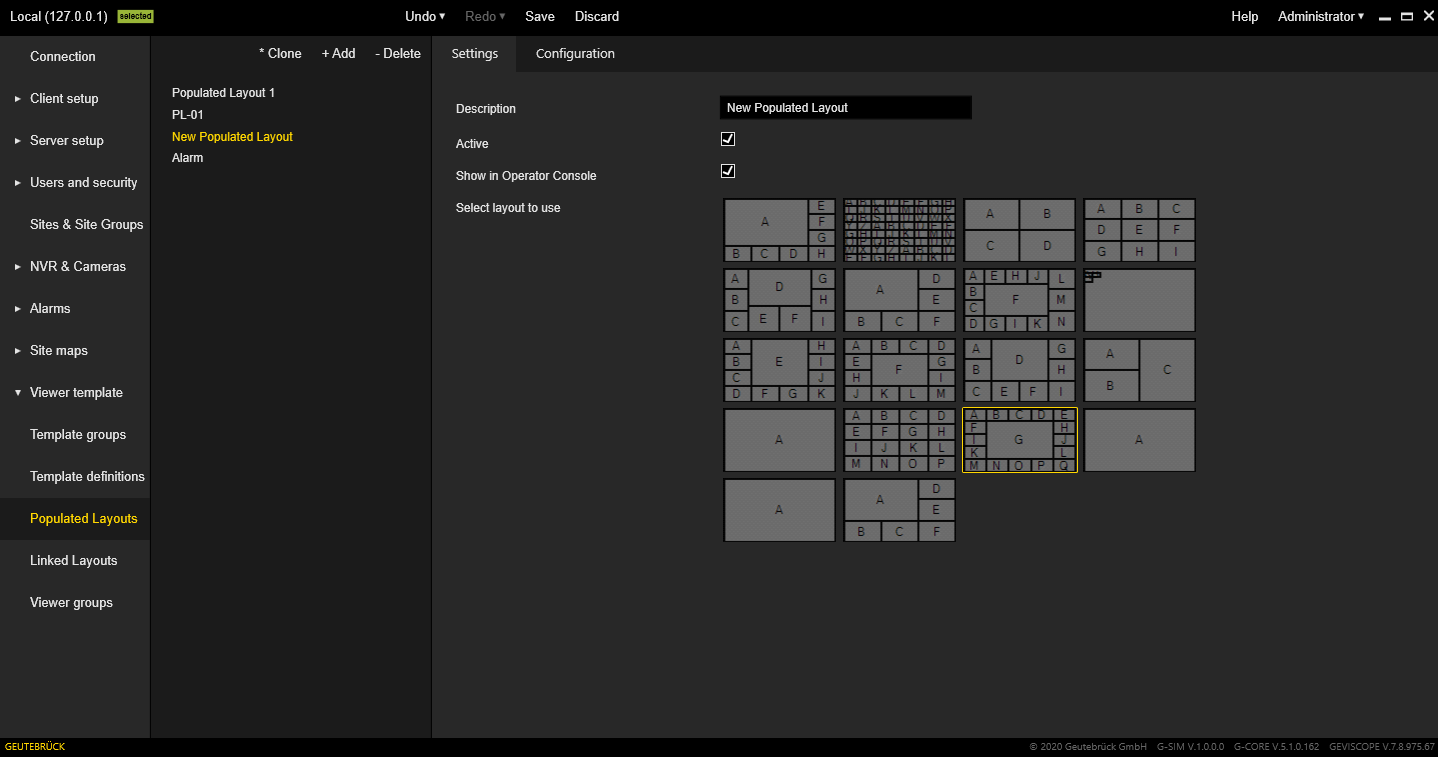

The Settings tab contains the following settings:
|
Settings |
Description |
|---|---|
|
Description |
Allows the user to configure the description for the selected populated layout. |
|
Active |
Select the checkbox to activate the populated layout. |
|
Show in Operator Console |
Allows you to use the layout in the template selector. |
|
Select layout to use |
Allows the user to select already defined template definitions. |
Configuration

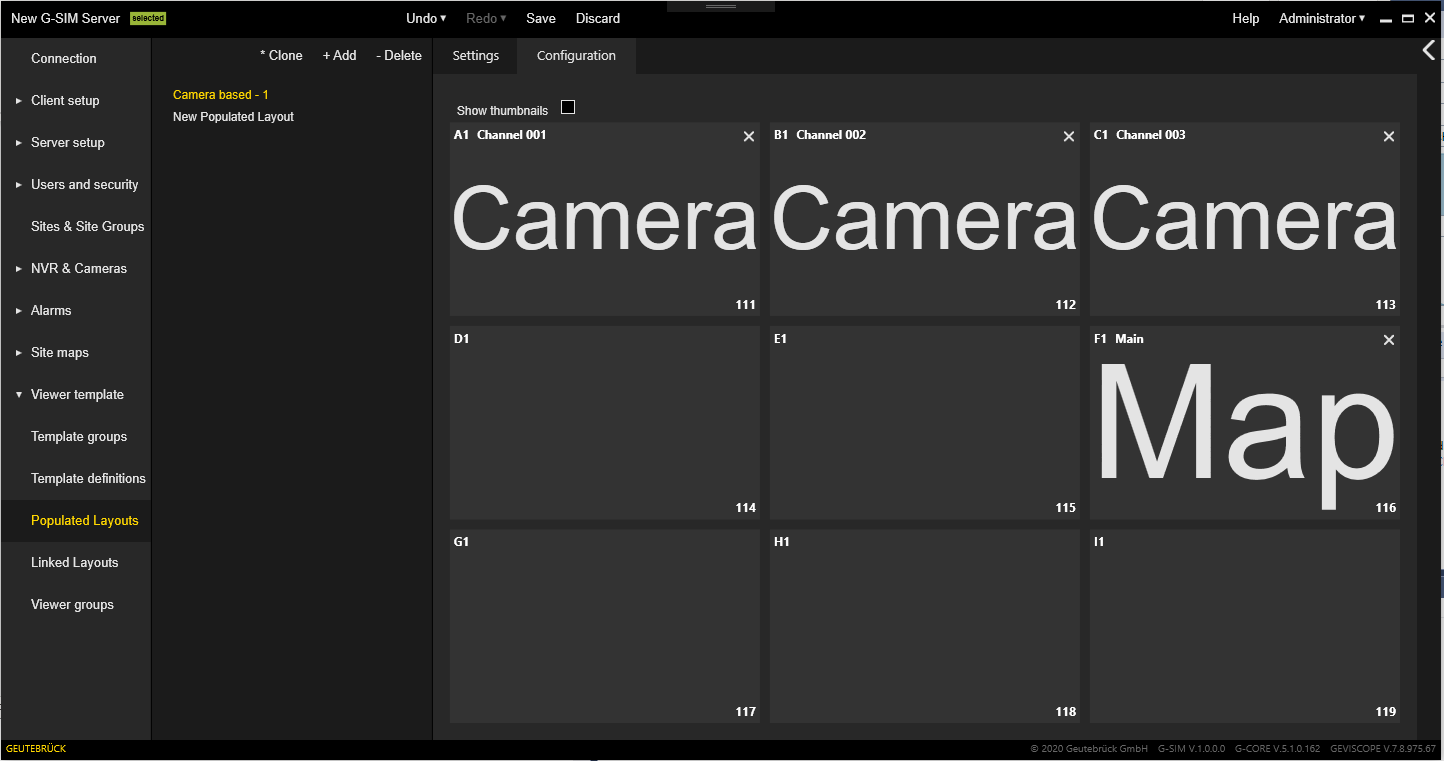

The Configuration tab contains a layout editor that is used to configure the contents of the viewer.
A single viewer contains:
|
Element |
Description |
|---|---|
|
|
Viewer number |
|
|
Content name / description |
|
|
Clear button Removes content from a viewer. |
|
|
Global number |
If the contents of the viewer have a reference image, it can be displayed by selecting the Show thumbnail checkbox.
The viewer configuration is performed in the following ways:
-
The viewer content is moved by a drag and drop action from the contents list to a viewer.
-

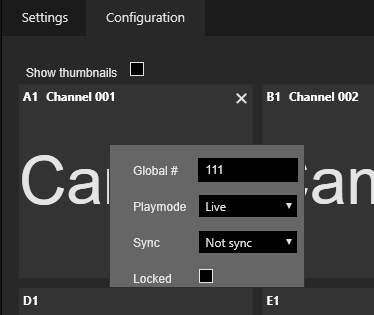

Global number (Global #), Playmode, Sync and locking is configured through a context menu on each single viewer.

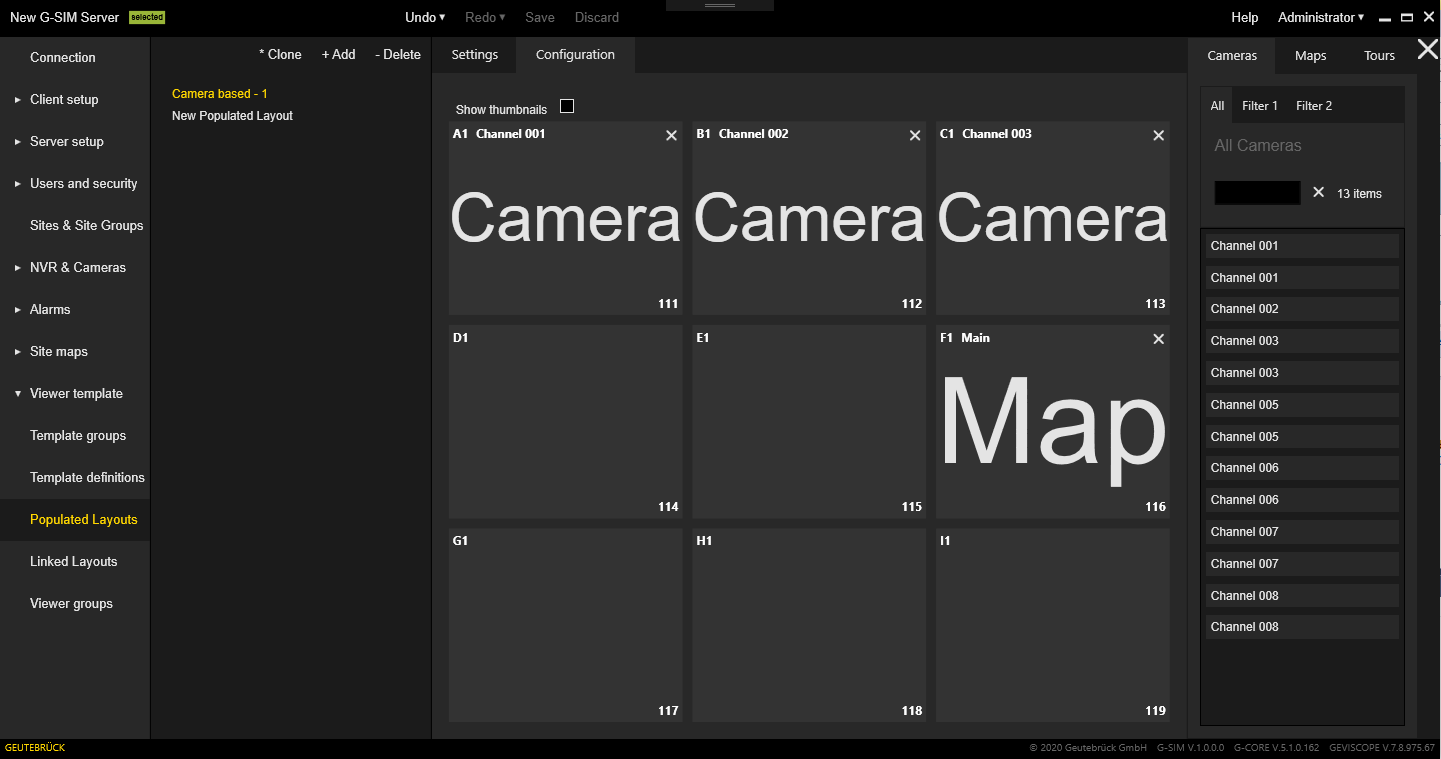

Content List
The content lists area is visible when the Configuration tab is visible. It can be expanded and collapsed. Content lists contain tabs with media contents that can be dropped on a viewer. Each contents tab has filter tabs.
